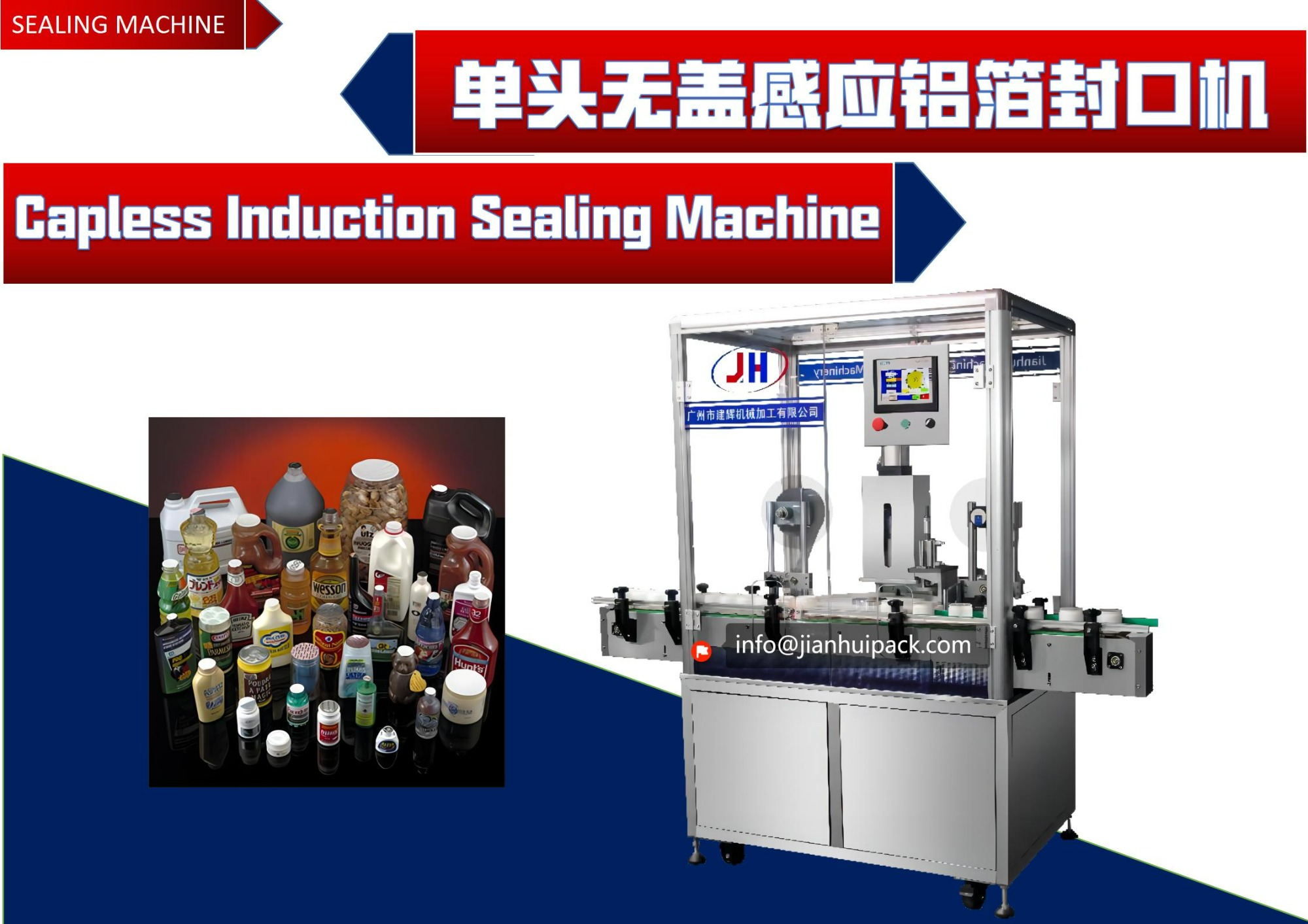

Name: Single Head Film Cutting& Induction Sealing Machine
Brand: Jianhui Packaging Machinery -Guangzhou Jianhui Machinery Processing Co,. Ltd
SKU: JHSL-1A
Price: 12500.00 $
Availability: InStock
Rating: 5 (1 reviews)

Home > Sealing Machine

Single Head Film Cutting& Induction Sealing Machine

Description

Video of Single Head Film Cutting& Induction Sealing Machine

Product Features

The film cutting and sealing machine is a full-automatic turntable type roil film die cutting and electromagnetic induction heating sealing machine. It can seal containers of different sizes and shapes. Its induction technology can achieve perfect and lasting sealing, reduce sealing time, reduce energy consumption, reduce packaging material consumption, make the appearance more beautiful, and increase the safety of operators.

Automatic die cutting, positioning and induction sealing are completed at the same time to overcome the challenge of all cappless induction aluminum foil sealing.The punching part adopts a special ceramic knife die for punching, and its hardness and wear resistance are more than 60 times that of the steel knife, so as to ensure the long-term operation of the equipment without shutdown and maintenance due to the wear of the knife.

The size of the gasket and the size of the bottle mouth are perfectly combined, the problems such as the unsightness caused by the extrusion deformation of the gasket by the bottle cap and the increase of gasket cost caused by the fact that the aluminum foil must be larger than the bottle mouth are completely solved in the capping technology.

Cappless aluminum foil sealing can directly see the sealing condition of aluminum foil without installing other testing equipment, saving the sampling inspection procedure.

Non-capacitive induction sealing head and new induction coil will be used to focus the coil energy on the area contacting the aluminum foil at the bottle mouth. This design will minimize the internal heat of the sealing head and reserve heat dissipation space for cooling, which keeps the sealing head at low temperature.

The whole machine is designed according to GMP requirements, with stainless steel 316 chassis and independent electric cabinet.

Technical Parameters

Item	Parameters
Equipment process flow	Bottle entering conveyor belt - Automatic entering turntable positioning - Automatic film cutting and pressing - Automatic electromagnetic induction sealing - Automatic output
Sealing range	Customized according to the sample bottle (the turntable is designed to be shared by three bottles, and there is no need to replace the turntable when changing the products)
Sealing speed	28-30 bottles / min (the film cutting die needs to be replaced for aluminum foil gaskets of different sizes)
Remark	(12 stations universal turntable is adopted, which can meet three types of sample bottles without replacing the turntable) The cutter die shall be replaced with quick disassembly and assembly structure design (replacing the cutter die within 5 minutes)
