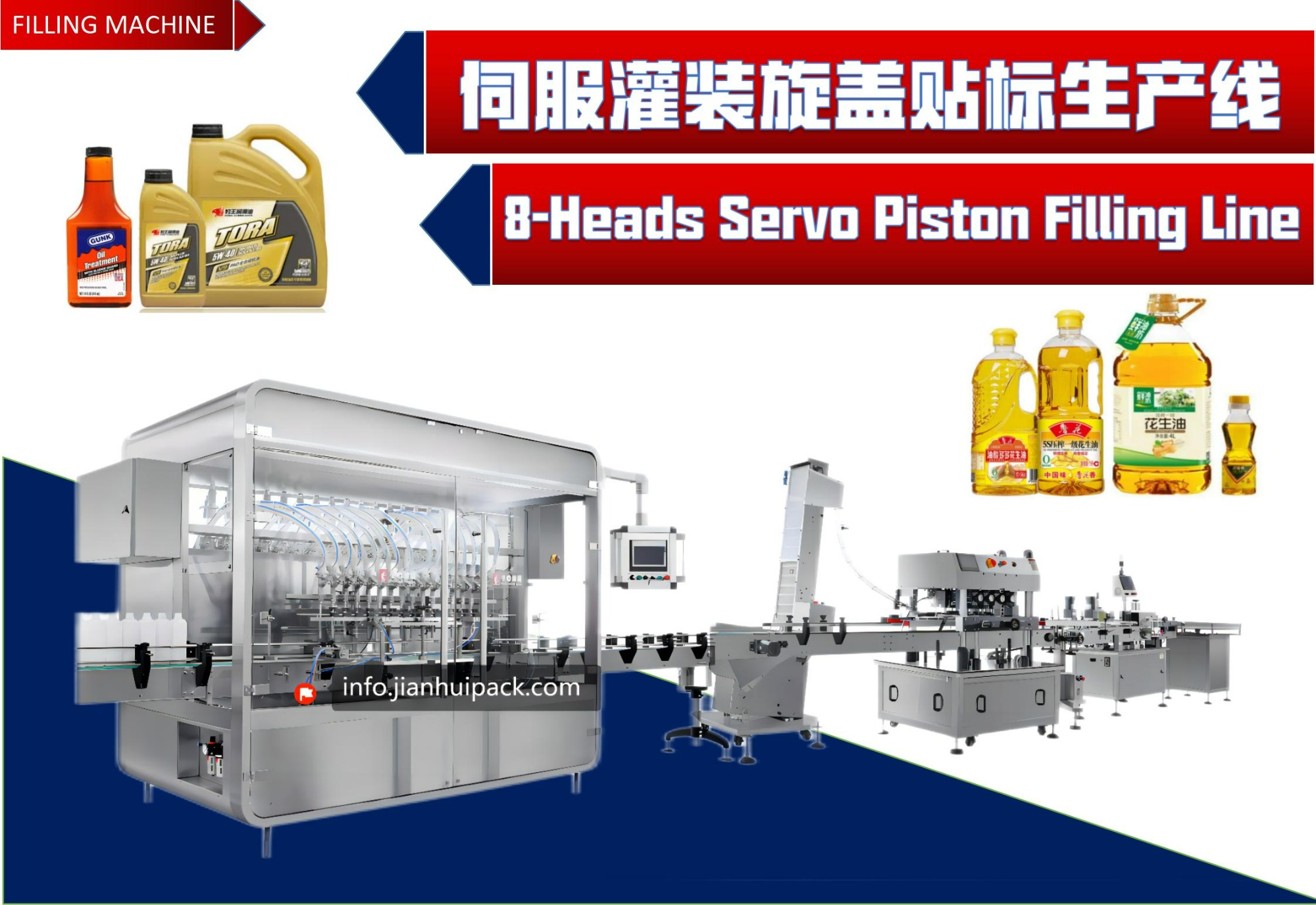

8-Heads Servo Piston Filling and Capping Production Line

Description

1.High-precision, electrically-driven ball screw movement, faster and more precise than pneumatic or air over oil systems.
2.Fill and charge speeds can be better controlled and changes performed at any point of the stroke (i.e., to reduce speed at the end of a fill cycle to avoid splashing).
3.Capable of handling breakable particulates up to ¾ in diameter.
4.Reservoir tank mounted directly above rotary valves for direct product feed.
5.Minimal air consumption.
6.No bottle no fill PLC controlled.
7.Nozzle spacing, container height, nozzle stroke, entry and exit bottle gating cylinders are adjustable.
8.Works with plastic or glass containers.
9.No change parts needed for various types of containers.
10.Pistons and fill nozzles available in various sizes.
11.Optional sanitary pistons and fittings.

Technical Parameter

Name: 8-Heads Servo Piston Filling and Capping Production Line
Brand: Jianhui Packaging Machinery -Guangzhou Jianhui Machinery Processing Co,. Ltd
SKU: JHFL-8H
Price: 36700.00 $
Availability: InStock
Rating: 5 (1 reviews)

1.Heavy duty 304 stainless steel welded frame construction.
2.FDA approved metallic rotary valves.
3.All contact parts are stainless steel, sanitary, Teflon, Buna and Viton.
4.Omron PLC for all machine logic functions.
5.AC variable speed control.
6.Front panel mounted bottle counter.
7.Front panel Start and E-STOP for easy access.
8.Fiber optic sensors by Omron standard for container gating.
9.Voltage: 220/380 Volts, 50/60Hz
10.Filling range: 10-60ml/20-120ml/50-500ml/100-1000ml/500-5000ml
11. Capacity: 50-60/BPM
